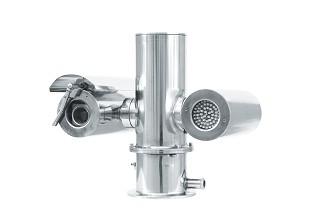

          SHEX920 Series Ex PTZ Camera

          Model:

          SHEX920, SHEX920A

          Name:

          Ex PTZ Camera

          Ex Mark:

          II2G  Ex d IIC T6,Ta:-40℃≤Ta≤+60℃  ;  II2D  Ex t IIIC T80℃ Db.

          IP Level:

          IP68


                           SHEX920


                         SHEX920A

          Description


          SHEX920 / SHEX920A Explosion-proof Integrated PTZ Camera System is used in the places, where is classified as Zone1 or Zone2, contained GroupⅡA, GroupⅡB and GroupⅡC gases, contained the mixture circumstance with the explosive gas atmospheres and flammable mists or dusts , where is classified as Zone21 or Zone 22. Temperature group T1~T6. It combines with IR illuminator to achieve the surveillance in low illumination. It is ideal for weak light、hazardous environment and farther range control applications. With outside washer and reservoir and all mechanical structure, it has integrated design, compact structure, small shape as well as easy installation and maintenance. With functions of maximum cruise speed for Ex products and characteristic speed change, it has flexible operation and quicker feedback.




          Technical Data


          Model

          SHEX920

          SHEX920A

          Certification Parameter

          Manufacturers Standard

          EN60079-0:2009, EN60079-1:2007, EN60079-31:2009

          GB3836.1--2000, GB3836.2--2000, GB12476.1-2000

          Configuration Mode

          Integrated configuration without external connection; Fixed cable entry

          Explosion-proof Mark

          IP

          IP682m/2h

          Operating Temperature

          -2560

          Cable Entries

          1×G1/2”Explosion-proof cable entry , Dia. of inner hole Φ12

          Mechanical Features

          Material

          304 / 316LStainless steel

           Pan/Tilt Range (°)

          350 (or 360 continuously)  / ±90

          Pan/Tilt Rotate Speed (°/s)

          Fixed speed6°~20°/snote2 / 4°~20°/s adjustable / 0.1°~40°/s adjustable

          Electric Motor

          The permanent magnetism DC motor of high torque matches the planetary

          gear reducer of high precision

          Control System

          Bus structure, servo-controlled system

          Communication

          RS-485 semiduplex

          Protocol

          PELCO-D (other protocols replaced according to consumer’s demands)

          Baud Rate

          1200 / 2400 / 4800 / 9600 / 19200

          Construction Dimension

          Sight Glass Dimensions

          φ64

          Outside Glass Dimensions L x W x H mm

          450 × 400 × 160

          315 × 400 × 160

          Inside Glass Dimensions L x W x H mm

          Camera enclosure

          IR enclosure

          Camera enclosure

          φ78 × 210

          φ100 × 210

          φ78 × 210

          Weight (Kg)

          26

          19

          Power Supply

          Voltage (V)

          AC110~260V, 50/60Hz,  AC24V, 50/60Hz

          CurrentA

          1A

          Accessories

          Fitted as standard

          Sunshield

          Optional

          Washer and reservoir; Wiper; Heater; Preset positioning; Camera

          IR Illuminator

          VoltageV

          DC12V

          No

          Wave length

          850nM

          Power

          10W
